基于LAMP高可用企业级服务架构搭建

架构图：

服务器准备

192.168.1.10：nginx（做缓存和负载均衡）
192.168.1.11：http1（业务）
192.168.1.12：http2（业务）
192.168.1.13：amoeba（mysql高可用）
192.168.1.14：mysql主
192.168.1.15：mysql从
192.168.1.16：nfs
192.168.1.17：数据备份服务器

1、配置两台http服务器（11、12）

yum -y install httpd php php-mysql
systemctl start httpd
systemctl enable httpd

2、配置nfs服务器

nfs服务器操作（16）

安装nfs服务端相关包，开启共享目录读写权限，开启服务并查看服务状态

yum -y install nfs-utils rpcbind
mkdir -p /backup/http
echo "/backup/http     192.168.1.0/24(rw,sync,no_all_squash)" >/etc/exports
systemctl start rpcbind
systemctl enable rpcbind
systemctl start nfs
systemctl enable nfs
exportfs

两台http服务器操作（11、12）

安装nfs客户端，并将nfs服务器共享目录/backup/http/挂载到 /var/www/html/，写入系统配置文件

yum -y install nfs-utils
mount 192.168.1.16:/backup/http/ /var/www/html/
df -Th
echo "192.168.1.16:/backup/http   /var/www/html     nfs  defaults,_netdev    0     0" >>/etc/fstab

3、配置主从mysql，开启慢查询日志和半同步复制，并配置主从同步+amoeba读写分离

配置主从同步

主库(14)：

yum -y install mariadb mariadb-server

vim /etc/my.cnf

log-bin=mysql-bin
server-id=1

从库(15)：

yum -y install mariadb mariadb-server

vim /etc/my.cnf

log-bin=mysql-bin
server-id=2

配置慢查询日志

主库添加：

vim /etc/my.cnf

slow_query_log = ON
slow_query_log_file = /var/lib/mysql/logs/slow.log
long_query_time = 1

开启半同步复制

主库需添加配置：

plugin-load=rpl_semi_sync_master=semisync_master.so
rpl_semi_sync_master_enabled=1

从库：

plugin-load=rpl_semi_sync_slave=semisync_slave.so
rpl_semi_sync_slave_enabled=1

综上：

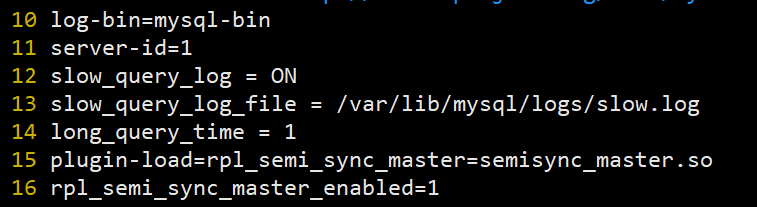

主库配置文件：

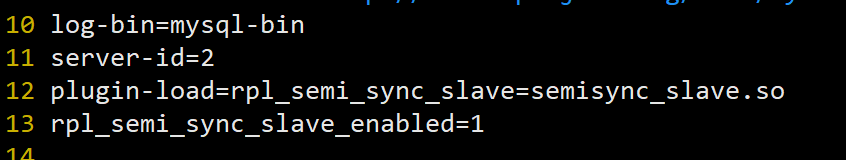

从库配置文件：

配置后开启

systemctl start mariadb.service systemctl enable mariadb.service

测试：

测试主从同步

主库：

mysql

grant replication slave on *.* to slave@'192.168.1.%' identified by '123';

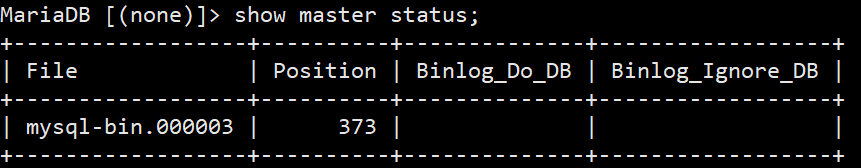

show master status;

找到mysql-bin.000003和master_log_pos=373，使用这两条数据配置到从库

从库：

mysql #登入
change master to master_user='slave',master_password='123',master_host='192.168.1.14',master_log_file='mysql-bin.000003',master_log_pos=373;
start slave;

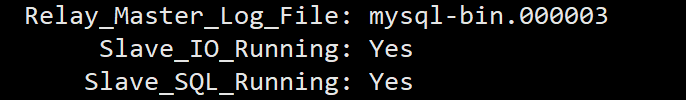

show slave status\G

主库插入数据：

create database school;
use school
create table students(id int,name varchar(20));
insert into students values(1,'zhangsan'),(2,'lisi');

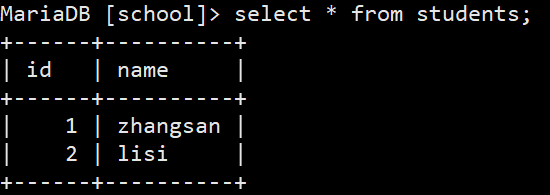

select * from students;

从库查看是否同步（可看到已经同步），然后暂停同步额外插入一条数据（为读写分离做测试）

stop slave;
use school
insert into students values(3,'wangwu');
start slave;

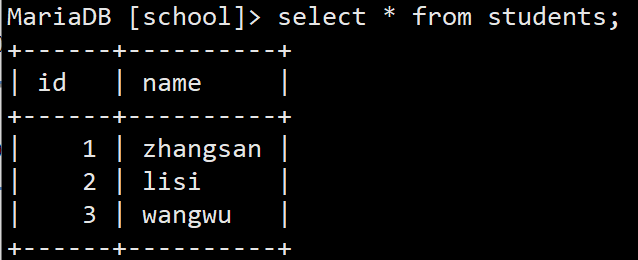

select * from students;

主库查看慢查询是否开启：

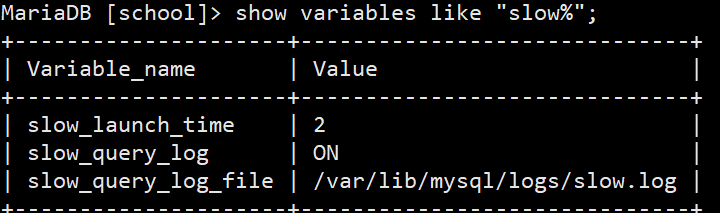

show variables like "slow%";

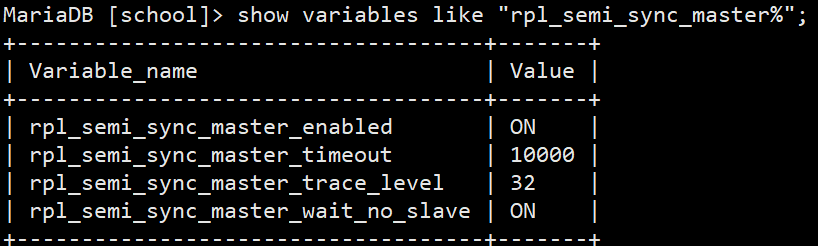

查看半同步复制是否开启

主库

show variables like "rpl_semi_sync_master%";

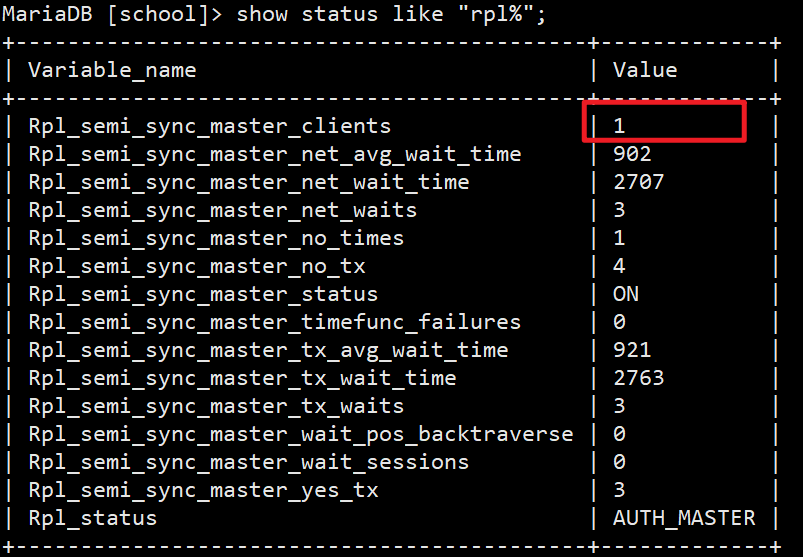

状态统计

show status like "rpl%";

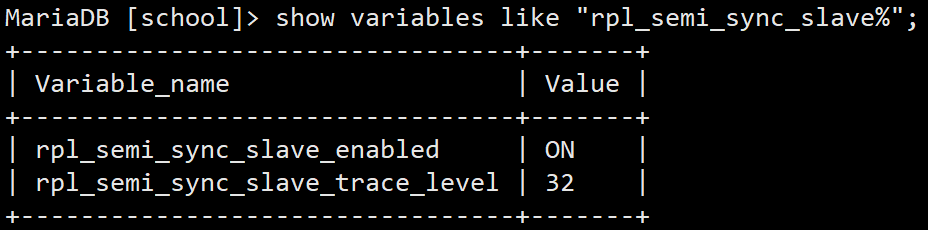

从库

show variables like "rpl_semi_sync_slave%";

4、amoeba读写分离

jdk环境变量

下载包amoeba-n.zip

unzip amoeba-n.zip
yum -y install gcc gcc-c++
cd amoeba-n
mkdir /amoeba
tar -xf jdk-7u40-linux-x64.gz
cp -a jdk1.7.0_40/ /amoeba/jdk

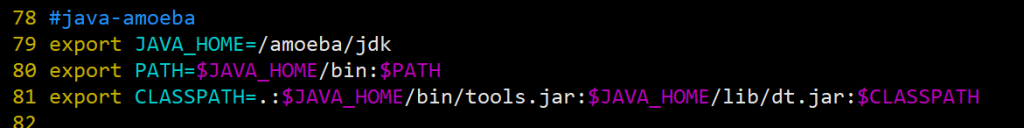

vim /etc/profile

#java-amoeba
export JAVA_HOME=/amoeba/jdk
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=.:$JAVA_HOME/bin/tools.jar:$JAVA_HOME/lib/dt.jar:$CLASSPATH

source /etc/profile

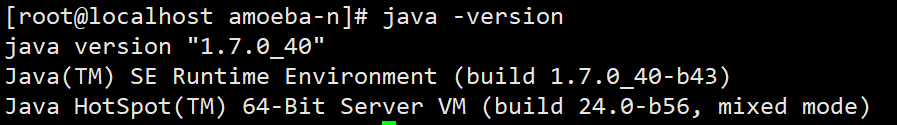

java -version

配置amoeba

unzip amoeba-mysql-1.3.1-BETA.zip -d /usr/local/amoeba
cd /usr/local/amoeba/
chmod +x bin/*

vim /usr/local/amoeba/conf/amoeba.xml

<server>
    <!-- proxy server绑定的端口 -->
    <property name="port">8066</property>

    <property name="ipAddress">192.168.1.13</property>
    <!-- proxy server net IO Read thread size -->
    <property name="readThreadPoolSize">20</property>

    <!-- proxy server client process thread size -->
    <property name="clientSideThreadPoolSize">30</property>

    <!-- mysql server data packet process thread size -->
    <property name="serverSideThreadPoolSize">30</property>

    <!-- socket Send and receive BufferSize(unit:K)  -->
    <property name="netBufferSize">128</property>

    <!-- Enable/disable TCP_NODELAY (disable/enable Nagle's algorithm). -->
    <property name="tcpNoDelay">true</property>

    <!-- 对外验证的用户名 -->
    <property name="user">amoeba</property>

    <!-- 对外验证的密码 -->
    <property name="password">123</property>

    <!-- query timeout( default: 60 second , TimeUnit:second) -->
    <property name="queryTimeout">60</property>
</server>

<!--
    每个ConnectionManager都将作为一个线程启动。
    manager负责Connection IO读写/死亡检测
-->
<connectionManagerList>
    <connectionManager name="defaultManager" class="com.meidusa.amoeba.net.MultiConnectionManagerWrapper">
        <property name="subManagerClassName">com.meidusa.amoeba.net.AuthingableConnectionManager</property>

        <!--
          default value is avaliable Processors
        <property name="processors">5</property>
         -->
    </connectionManager>
</connectionManagerList>

<dbServerList>
    <dbServer name="server1">
        <factoryConfig class="com.meidusa.amoeba.mysql.net.MysqlServerConnectionFactory">
            <property name="manager">defaultManager</property>
            <property name="port">3306</property>
            <property name="ipAddress">192.168.1.14</property>
            <property name="schema">school</property>
            <property name="user">abc</property>
            <property name="password">123</property>
        </factoryConfig>
        <poolConfig class="com.meidusa.amoeba.net.poolable.PoolableObjectPool">
            <property name="maxActive">200</property>
            <property name="maxIdle">200</property>
            <property name="minIdle">10</property>
            <property name="minEvictableIdleTimeMillis">600000</property>
            <property name="timeBetweenEvictionRunsMillis">600000</property>
            <property name="testOnBorrow">true</property>
            <property name="testWhileIdle">true</property>
        </poolConfig>
    </dbServer>
    <dbServer name="server2">
        <factoryConfig class="com.meidusa.amoeba.mysql.net.MysqlServerConnectionFactory">
            <property name="manager">defaultManager</property>
            <property name="port">3306</property>
            <property name="ipAddress">192.168.1.15</property>
            <property name="schema">school</property>
            <property name="user">abc</property>
            <property name="password">123</property>
        </factoryConfig>
        <poolConfig class="com.meidusa.amoeba.net.poolable.PoolableObjectPool">
            <property name="maxActive">200</property>
            <property name="maxIdle">200</property>
            <property name="minIdle">10</property>
            <property name="minEvictableIdleTimeMillis">600000</property>
            <property name="timeBetweenEvictionRunsMillis">600000</property>
            <property name="testOnBorrow">true</property>
            <property name="testWhileIdle">true</property>
        </poolConfig>
    </dbServer>


    <dbServer name="write" virtual="true">
        <poolConfig class="com.meidusa.amoeba.server.MultipleServerPool">
            <property name="loadbalance">1</property>
            <property name="poolNames">server1</property>
        </poolConfig>
    </dbServer>
    <dbServer name="read" virtual="true">
        <poolConfig class="com.meidusa.amoeba.server.MultipleServerPool">
            <property name="loadbalance">1</property>
            <property name="poolNames">server1,server2</property>
        </poolConfig>
    </dbServer>
</dbServerList>

<queryRouter class="com.meidusa.amoeba.mysql.parser.MysqlQueryRouter">
    <property name="ruleConfig">${amoeba.home}/conf/rule.xml</property>
    <property name="functionConfig">${amoeba.home}/conf/functionMap.xml</property>
    <property name="ruleFunctionConfig">${amoeba.home}/conf/ruleFunctionMap.xml</property>
    <property name="LRUMapSize">1500</property>
    <property name="defaultPool">write</property>
    <property name="writePool">write</property>
    <property name="readPool">read</property>
    <property name="needParse">true</property>
</queryRouter>

vim /usr/local/amoeba/bin/amoeba

测试

主库服务器授权给abc用户
grant all on . to abc@'%' identified by '123';从库自然会同步

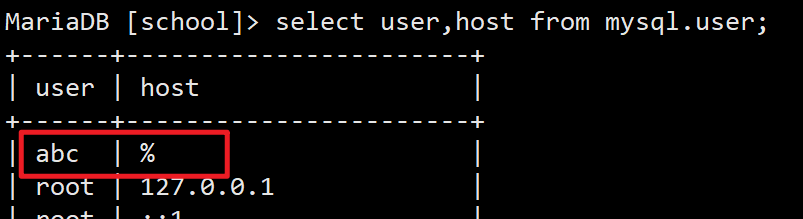

select user,host from mysql.user;

amoeba客户端登录测试

yum -y install mariadb mysql -uabc -p123 -h 192.168.1.14 mysql -uabc -p123 -h 192.168.1.15

登录成功继续即可

登录成功后开启amoeba并登陆自己

nohup bash -x /usr/local/amoeba/bin/amoeba & netstat -anpt | grep 8066 mysql -uamoeba -p123 -P8066 -h192.168.1.13

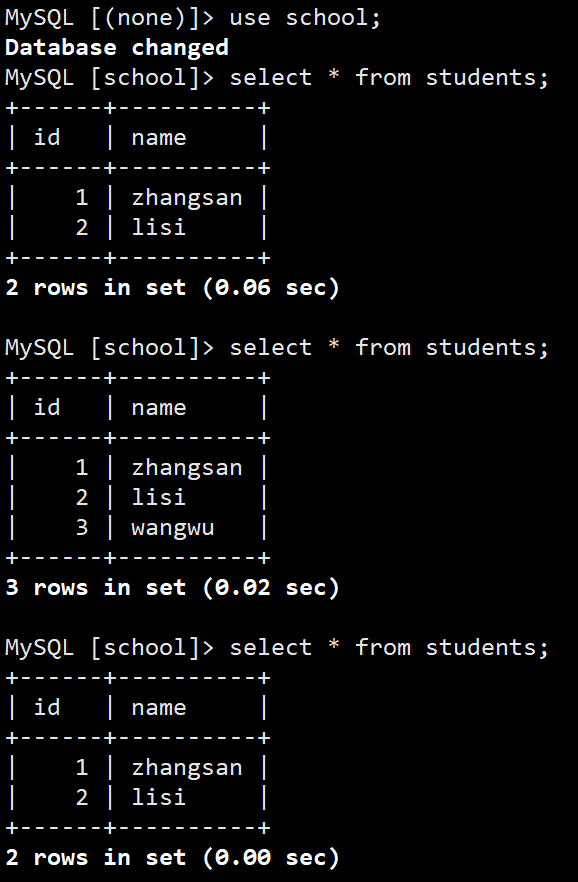

测试轮询

use school;

select * from students;

测试高可用
宕机一台mysql尝试轮询

nfs服务器

在nfs服务器（16）挂载目录安装dizcuzdb，之后数据库指向主库（14）

安装
yum -y install httpd cd /backup/http/
加入包，放在/backup/http/目录下
Discuz_X3.3_SC_UTF8.zip yum -y install unzip.x86_64 unzip Discuz_X3.3_SC_UTF8.zip
mv upload/* . rm -rf Discuz_X3.3_SC_UTF8.zip readme/ utility/ upload chown -R apache:apache .

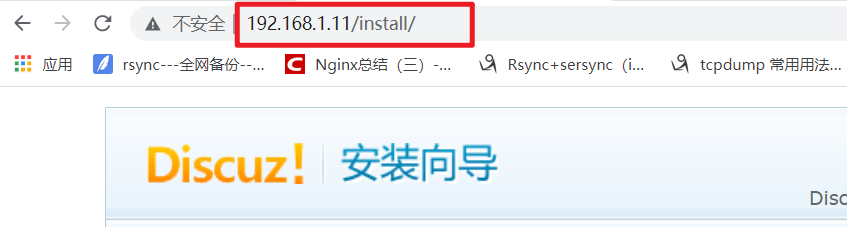

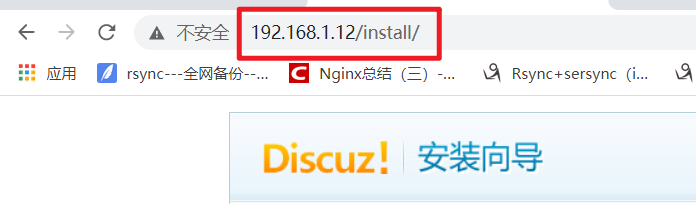

测试页面输入：192.168.1.11和192.168.1.12

配置nginx实现轮询（10）

安装nginx（10）nginx-1.6.0.tar.gz

yum -y install gcc gcc-c++ pcre-devel openssl openssl-devel zlib-devel ncurses-devel cmake bison libxml2-devel libpng-devel
useradd -M -s /sbin/nologin nginx
tar xf nginx-1.6.0.tar.gz -C  /usr/src; cd /usr/src/nginx-1.6.0
./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_stub_status_module --with-http_ssl_module
make && make install
echo $?
ln -s /usr/local/nginx/sbin/* /usr/local/sbin/

vim /usr/local/nginx/conf/nginx.conf

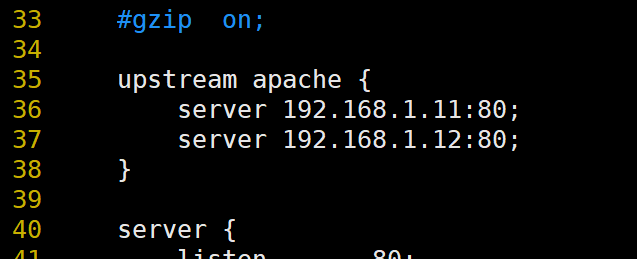

upstream apache {
    server 192.168.1.11:80;
    server 192.168.1.12:80;
}

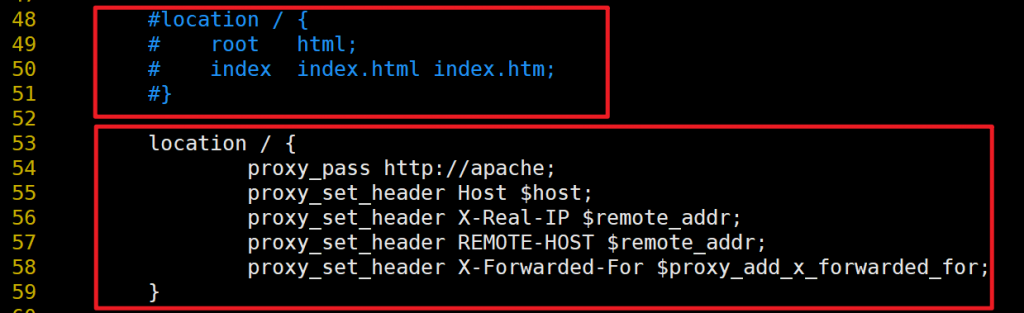

        location / {
                proxy_pass http://apache;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header REMOTE-HOST $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        }

开启nginx

浏览器输入192.168.1.10，测试负载均衡

配置discuzdb

首先在mysql主服务器中创建数据库discuzdb
create database discuzdb;

数据库名字：discuzdb

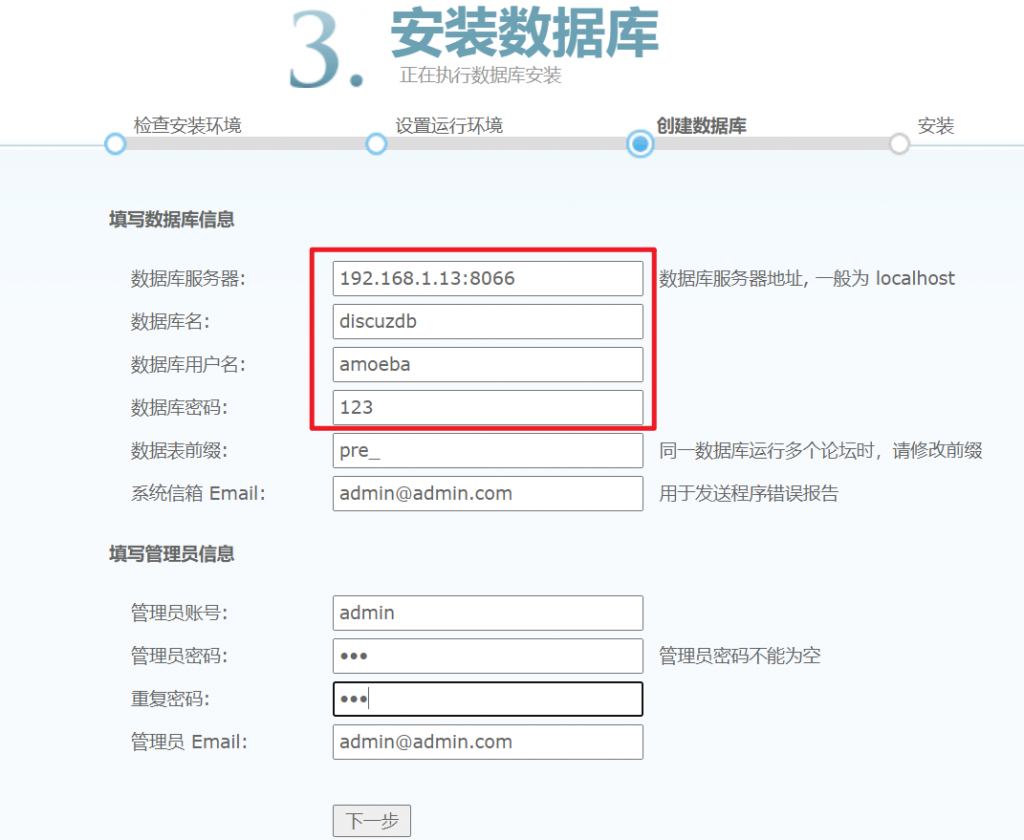

浏览器IP界面输入192.168.1.13:8066

在浏览器页面数据库使用的是amoeba登录本机所用的用户（amoeba）

下一步

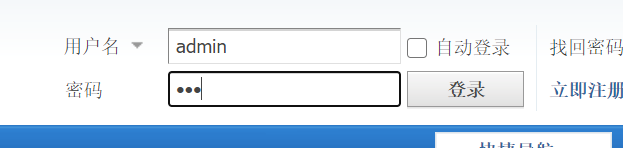

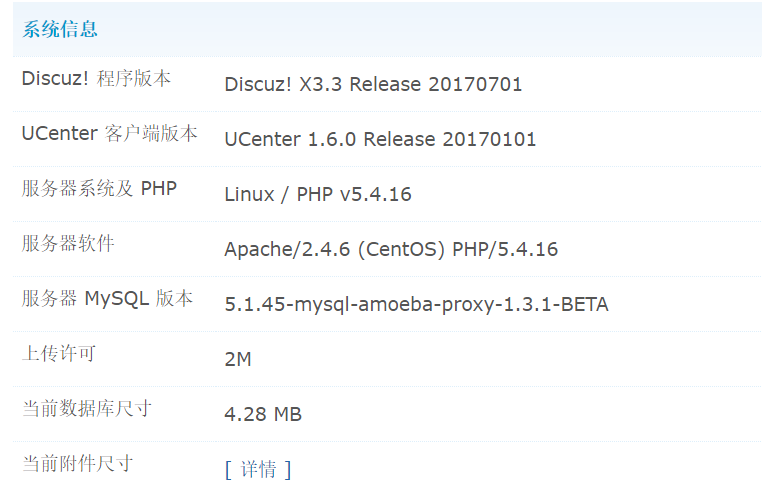

登陆成功：

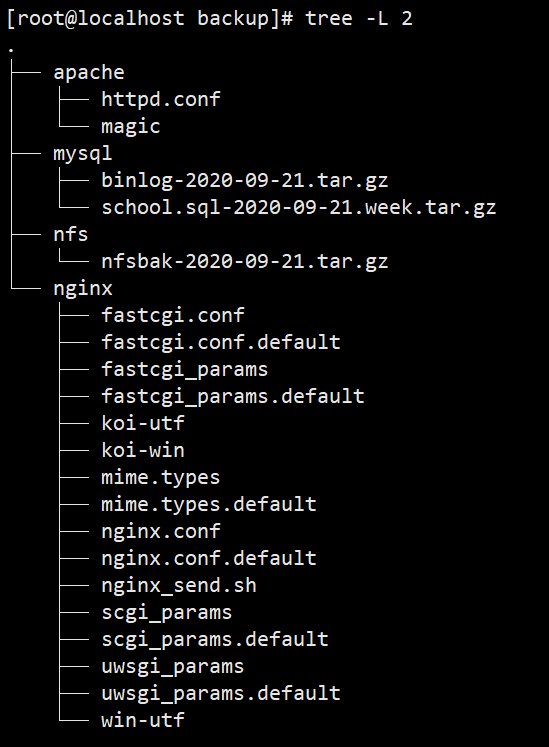

apache、nginx、nfs和mysql服务器实现备份

首先这5台服务器：（10nginx 11http1 14mysql主 15mysql从 16nfs 备份服务器17 ）把包和脚本都放到家目录下

inotify-tools-3.14.tar.gz

inotify_install.sh

#!/bin/bash
yum -y install gcc gcc-c++
tar xvf  inotify-tools-3.14.tar.gz -C /usr/local
cd  /usr/local/inotify-tools-3.14 ; ./configure
make && make install

rsync.sh

#!/bin/bash
#安装rsync包
yum -y install rsync
#创建rsync用户
useradd -M -s /sbin/nologin rsync
#创建备份目录，并修改属主和属组（已经创建，可以忽略）
mkdir /backup &>/dev/null
chown -R rsync.rsync /backup

#对配置文件进行修改
cat <<EOF>/etc/rsyncd.conf
uid = root
gid = root
use chroot = yes
max connections = 200
pid file = /var/run/rsyncd.pid
timeout = 900
ignore errors
list = false
fake super = yes
read only = false
############################
[backup]
    comment = welcome to backup
    auth users = rsync_user
    path = /backup
    secrets file = /etc/rsync.password
EOF

#创建认证文件，修改权限
echo "rsync_user:123" > /etc/rsync.password
chmod 600 /etc/rsync.password

#启动和自启动服务
systemctl start rsyncd
systemctl enable rsyncd
netstat -anput | grep :873

#客户端创建密码文件
echo "123" >/etc/rsync.pass
chmod 600 /etc/rsync.pass

nginx_send.sh

#!bin/bash
# 需要同步端的ip（这里需要改）
IP=192.168.1.17
# 需要同步的目录
DIR=/usr/local/nginx/conf/
#开启文件增删改监控并指定监控的目录
/usr/local/bin/inotifywait -mrq --timefmt '%d/%m/%y %H:%M' --format '%T %w %f' -e close_write,modify,delete,create,attrib $DIR | while read line &>/dev/null
do
	#持续监控VIP是否存在再自己的服务器端，如果存在，立刻进行备份
		rsync -avz --delete $DIR rsync_user@$IP::nginx --password-file=/etc/rsync.pass &>/dev/null
done

http配置（192.18.1.11即可）
